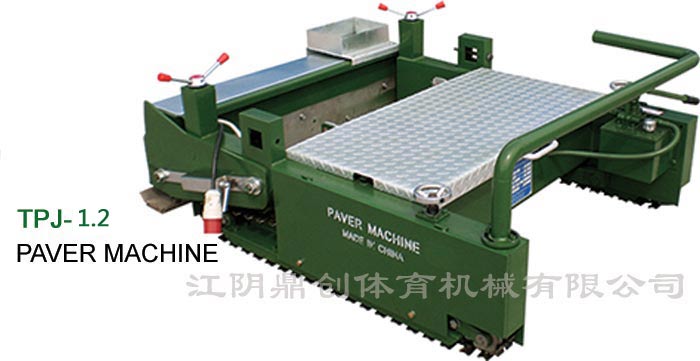

Small paver machine TPJ-1.2 is designed for small sports venues, fitness trail paving design production. This equipment for the manual hydraulic lifting device, therest of the functions are extended to the paver TPJ-2.5, laying smooth and flexible, efficient, manual hydraulic lifting safe and reliable characteristics, its performance tomeet the requirements of the sports site paving.
 |
| Main technical data |
| Paving Width: 1200mm |
| Moving Speed: 0.8-6m/min |
| Paving Capability: 300m2/h |
| Power: 5kw |
| Adjusted data of hydraulic pressure system:8Mpa |
| Adjusted temperature for electric board: 90℃ |
| Machine Weight: 500kg |
| Appearance measurement: 1500×1800×720mm | | |
