Main technical data
Volume for materail: 80L
Amount of spray output: 10-12kg/min
Power: 5.5kw
Air pressure: 0.7-0.8Mpa
Amount of gas output: 0.65m3/min
Machine Weight: 180kg
Appearance measurement: 1100×730×1100mm

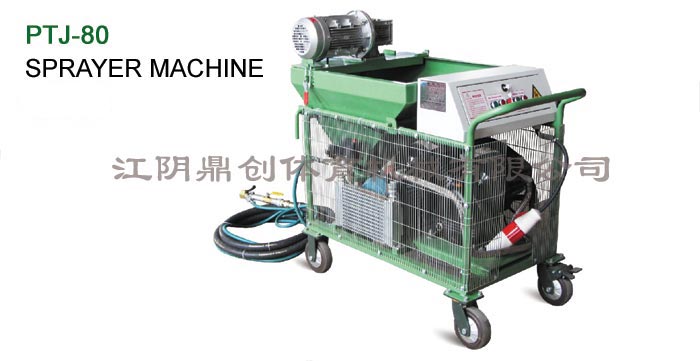

Sprayer machine PTJ-80 is the technology to extend the PTJ-120, the layout of the model has been improved, vertical feeding can make the hopper has no storage,hopper and rack can be separated, easy to clean, smaller and lighter equipment size, convenient transportation. Its performance meets the spraying requirements of thesurface of the sports ground, and achieves the ideal spraying effect.
